How to configure access to data

Introduction​

Listing workspaces​

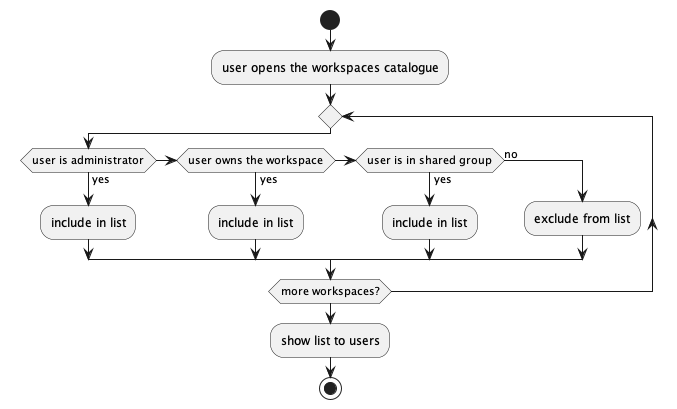

The diagram Listing workspaces illustrates how access control is applied to the workspace catalogue. The workspace catalogue lists all the workspaces accessible by the user.

A workspace will be included in the list if:

Listing workspaces
Listing workspaces

List and load publications​

Users will only be able to load a publication if their profile contains one of the roles linked to the publication.

Load a workspace​

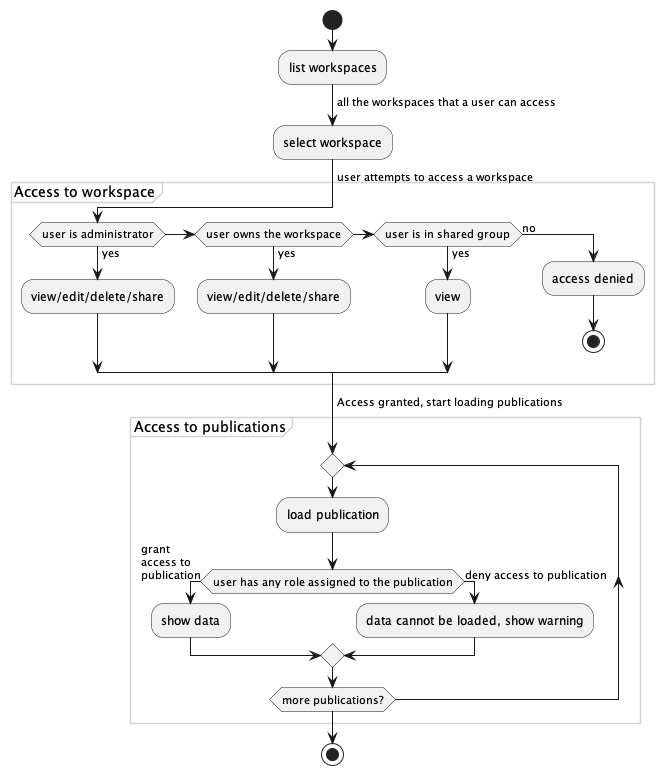

The diagram Access control when loading workspace illustrates how HxGN Smart Sites will enforce access control when a user attempts to load a workspace.

The user selects a workspace from the list of workspaces.

HxGN Smart Sites verifies access in order to control the allowed actions:

  • view: loading the data
  • edit: modify the workspace (removing or adding publications, change the title, ...)
  • delete: delete the workspace
  • share: share the workspace with other user groups, or remove shared groups

Workspace owners and administrators have all 4 permissions.

Users in shared groups have only view permission.

The diagram Access control when loading workspace also illustrates how HxGN Smart Sites enforces security at the publication level.

As a result of the rule stated in List and load publications, users might not be able to view all the publications bundled in a workspace. A warning is shown to the user when that is the case.

Access control when loading workspace
Access control when loading workspace

Configure user profiles​

HxGN Smart Sites uses a dedicated tool to configure user profile, Keycloak.

Roles​

HxGN Smart Sites is pre-configured with the hss-admin role. When the hss-admin role is mapped to a user, the user becomes an Administrator.

Refer to the Keycloak documentation to create roles.

Refer to the Keycloak documentation to map roles to users.

Groups​

If your installation relies on a user-federation mechanism (like LDAP or OIC), groups will be configured automatically. Otherwise, groups can be configured manually.

  • Log in your Keycloak instance, https://{your.HxGN.Smart.Sites.host}/auth.
  • Select the hss realm.
  • Select the Groups screen.
  • Select a group.
  • Select the Members tab.
  • Select Add member and add users to the group.
note

Refer to the Keycloak documentation for a detailed guide on group configuration.

Configure access to publications​

As described in List and load publications, a publication is accessible to a user when the user profile has one of the roles attached to that publication. Administrators must therefore attach roles to publications in the Admin Application.

note

A publication without any role attached will not be accessible to anyone in HxGN Smart Sites Client.

  • Go to the Admin Application.
  • Go to the Publication screen.
  • Attach one or more roles to the publication.

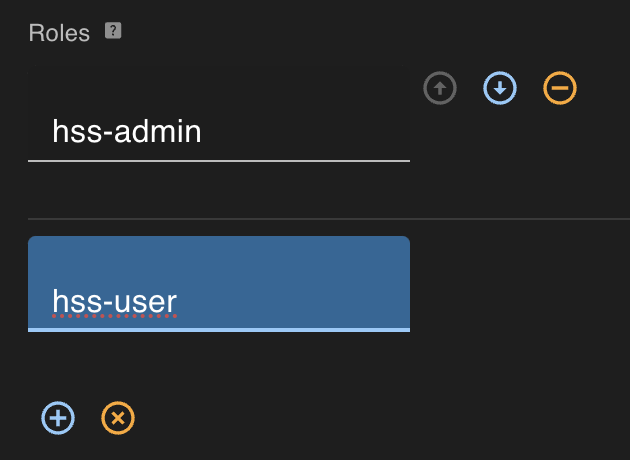

Mapping roles to a publication
Mapping roles to a publication

Share a workspace with other users​

A workspace owner or an Administrator can share a workspace with one or more groups. All the users within the shared group(s) will have access to the workspace.

  • in HxGN Smart Sites Client
  • Click the share icon Icon next to the workspace title
  • Attach the user groups as illustrated in Selecting groups, and click the "Share Workspace" button.
Selecting groups
Selecting groups

Footnotes​

  1. the user that created the workspace ↩

  2. users with the hss-admin role ↩
